Application and properties:
1.Plastic injection mold temperature controller is mainly applied for heating and maintaining the temperature of mould,and is also applicable for fields of same demands.
2.It adopts most advanced microcomputer control principle with precise electronic thermometer for dual temperature control with the precision reaching ±0.5°c.
3.It is adopts oil or water as heat conducting medium,safe and reliable.Two sets of heating wires assure stable temperature in oil tank,save time and power.
4.The product is installed with tank oil,over temperature and water pump overload automatic alarm system,automatically cut off loop for assuring safety.
5.It applies stainless steel tank which features corrosion resistance and long service life.
6.It adoprs microcomputer control and imported digital precise temperature control and independent cooler for assuring stable temperature.
Technical parameters:
Model | Water Pump (kw) | Output Capacity (L/min) | Heating Power (kw) | Heat Conducting Medium | Highest Temperature | Dimension (mm) | Weight (kg) |
AT-6KW | 0.37 | 60 | 6 | Water | 98℃/120℃ | 910x300x600 | 45 |
AT-9KW | 0.37-0.75 | 85 | 9 | Water | 98℃/120℃ | 1100x300x660 | 65 |
AT-12KW | 0.75 | 98 | 12 | Water | 98℃/120℃ | 1100x300x660 | 75 |
AT-6KW | 0.37 | 60 | 6 | Oil | 180℃/200-300℃ | 910x300x660 | 55 |
AT-9KW | 0.37-0.75 | 85 | 9 | Oil | 180℃/200-300℃ | 1100x300x660 | 75 |
AT-12KW | 0.75 | 95 | 12 | Oil | 180℃/200-300℃ | 1100x300x660 | 85 |
About us
Professional manufacturing plastic machinery over 28 years,produce plastic crusher,plastic dryer,plastic mixer,auto loader,industrial chiller,mould temperature machine,vibrating sieve,etc.

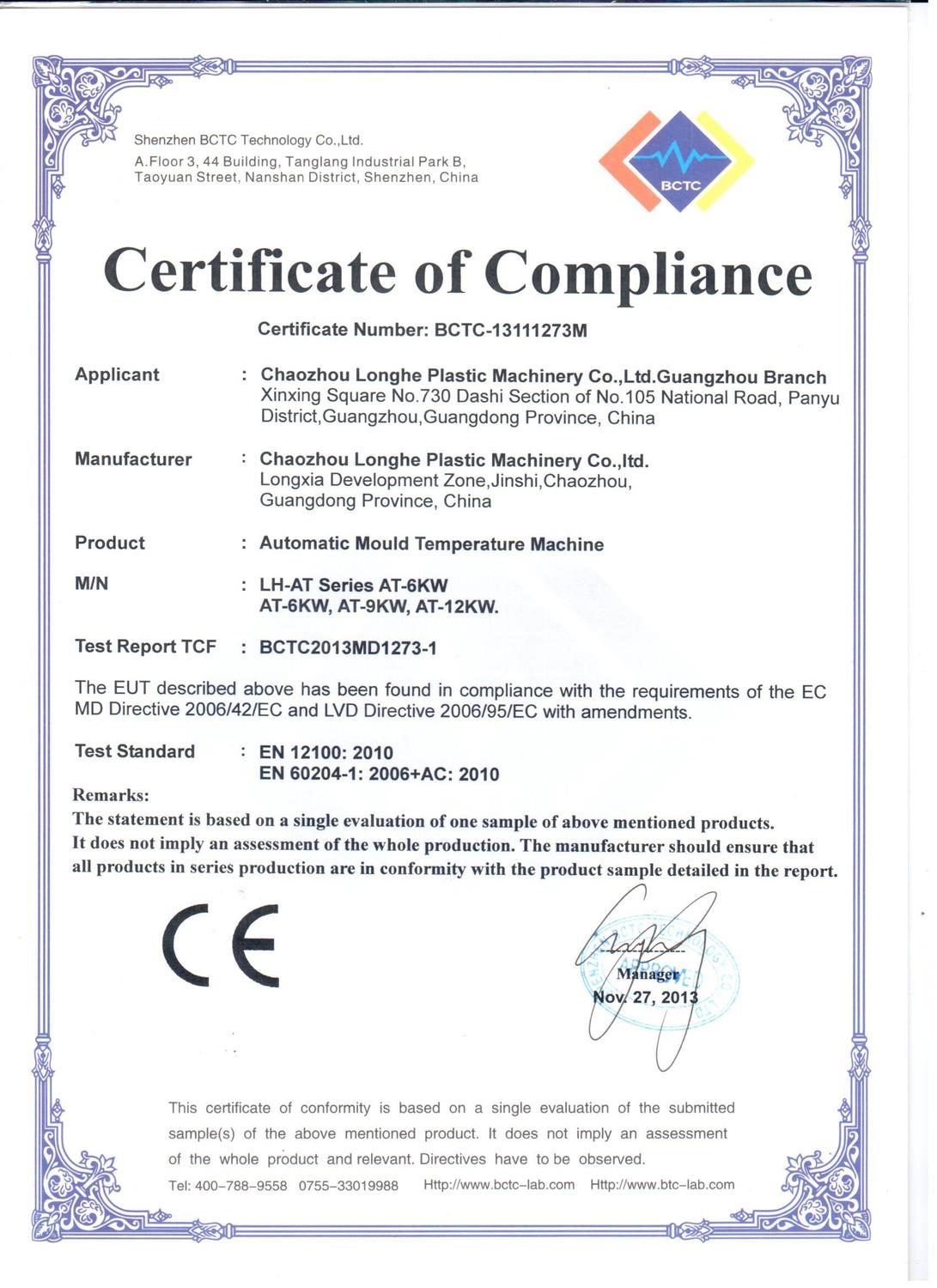

We have passed”ISO9001 International Quality Certification” and “CE”Quality Certification.
Supply Ability:200set/month
Quality Control:Allthe machines after inspection qualified can be factory sales.
Designedand developed: We have 28 years experience in design and research,a good technical team.
Exhibition Experience:Attend the Canton fair and plastic machinery industry for many years.
Cooperative Brand:Haitian injection machine company,Yizhimi injection machine, Gree air
conditioning and so on well-known enterprise cooperation
Quality control:
Before the order,should be confirmed,we would strictly check the material,voltage of the machine.
(1)We sales man,also as a order follower,would trace every phase of production from beginning.
(2)We have a QC team,every product would be checked by them before output factorysale.
(3)We would try our best to help clients solve problems when they occurred.
Cooperative Brand:
Haitian injection machine company,Yizhimi injection machine,Gree air conditioning and so on well-known enterprise,cooperation.
Payment and delivery terms:
Payment terms:
Less than USD30000 100%T/T,more than USD30000 can be choose L/C.
After received of all payment 5 working days.
